Kinematic Viscometers Bitumen Testing Kit | Burgan UAE
The Kinematic Viscometers Bitumen testing kit is a complete solution for the determination of kinematic viscosity of liquid asphalts and bitumens, available across UAE and GCC through Burgan Equipment Co. The kit includes three types of capillary viscometers designed for testing at 60°C and 135°C in full compliance with ASTM D2170, AASHTO T201, and EN 12595 international standards.
Overview
The Kinematic Viscometers Bitumen kit by Controls SPA includes Cannon-Fenske opaque viscometers, Zeitfuchs cross-arm viscometers, and BS U-Tube modified reverse flow viscometers — each supplied complete with a calibration certificate. All viscometer types are designed for use with the 81-PV0116/A viscometer bath, which maintains uniform temperature throughout the test with precision accuracy of ±0.03°C.

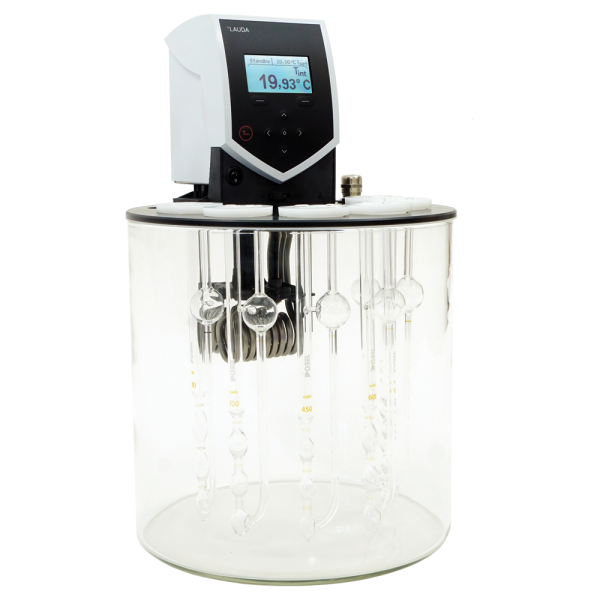

The viscometer bath is a central component of the kit, consisting of a cylindrical glass vessel with stainless steel cover, motor stirrer, refrigerating coil, heating system, and PID contact thermometer. It accommodates up to 6 viscometer tubes simultaneously, making it suitable for high-throughput bitumen quality control laboratories.
Kinematic Viscometers Bitumen — Types Included
Cannon-Fenske Opaque Viscometers: These are used for the determination of kinematic viscosity of liquid asphalts and bitumens at 60°C and distillation residue of liquid asphalts and asphalt cements at 135°C. Cannon-Fenske opaque models are specifically suitable for opaque liquids. Available in a wide range from 0.035 cSt/S (7–35 cSt) up to 20 cSt/S (4000–20000 cSt). Each viscometer is supplied with a calibration certificate.
Zeitfuchs Cross-Arm Viscometers: Used for the determination of kinematic viscosity of liquid asphalts, bitumens, road oils, and distillation residues at 135°C. Available in eight ranges from 0.1 cSt/S (20–100 cSt) up to 100 cSt/S (20000–100000 cSt). Each viscometer is supplied with a calibration certificate and requires the 81-B0116/H2 holder for use in the viscometer bath.
BS U-Tube Modified Reverse Flow Viscometers: Used for the determination of kinematic viscosity of liquid asphalts, bitumens, road oils, and distillation residues at 135°C. Available in nine ranges from 0.1 cSt/S (6–100 cSt) up to 300 cSt/S (18000–300000 cSt). Each viscometer is supplied with a calibration certificate and requires the 81-B0116/H3 holder for use in the viscometer bath.
Kinematic Viscometers Bitumen — Viscometer Bath Specifications
The 81-PV0116/A viscometer bath is the key instrument for kinematic viscosity testing. It is used to maintain the capillary type viscometers at a uniform temperature throughout the entire test duration.
Technical Specifications
- Temperature Range: Room temperature +5°C to 150°C (maximum 200°C)
- Temperature Stability: ±0.03°C
- Temperature Sensor: PID controller
- Jar Capacity: Approximately 20 liters
- Viscometer Capacity: 6 viscometer tubes simultaneously
- Power Rating: 2000 W
- Weight: Approximately 12 kg
- Power Supply: 230V/50-60Hz/1ph (also available 110V/60Hz/1ph)
Available Viscometer Ranges
The Kinematic Viscometers Bitumen kit covers a wide measurement range to accommodate different bitumen grades and test requirements across UAE and GCC laboratory facilities.
- Cannon-Fenske: 7 to 20,000 cSt
- Zeitfuchs Cross-Arm: 20 to 100,000 cSt
- BS U-Tube Reverse Flow: 6 to 300,000 cSt
