Centrifuge Binder Extractors Asphalt Testing | Burgan UAE
Centrifuge Binder Extractors are the most common and efficient method for determining bitumen percentage in bituminous mixtures, available across UAE and GCC through Burgan Equipment. Developed by Controls SPA, these extractors do not require heating of the solvent and are compatible with a wide range of chlorinated solvents including TCE and PERC. Special explosion-proof versions are available when flammable solvents are required.
Overview

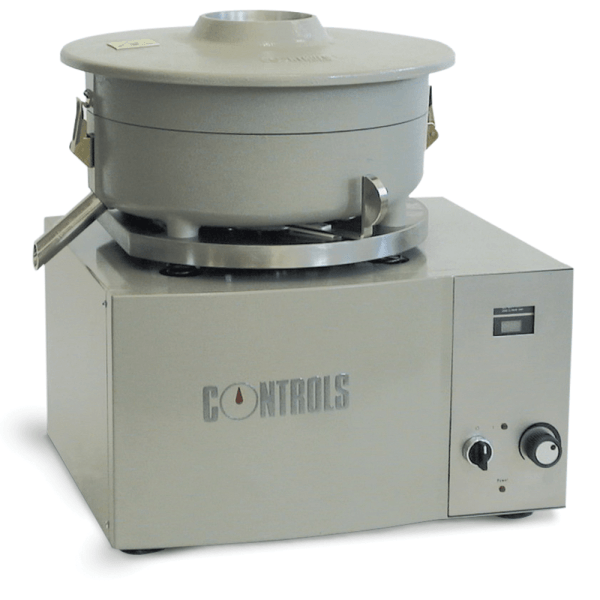

The Centrifuge Binder Extractors by Controls SPA feature a removable precision-machined rotor bowl housed in a cylindrical aluminium box, driven by an electric motor fitted with an AC drive inverter. The inverter performs the dual function of speed control up to 3600 rpm regardless of supply frequency (50 or 60 Hz) and electrical braking. The rotating unit is suspended on the base by four calibrated springs that assure perfect stability throughout the entire test cycle.

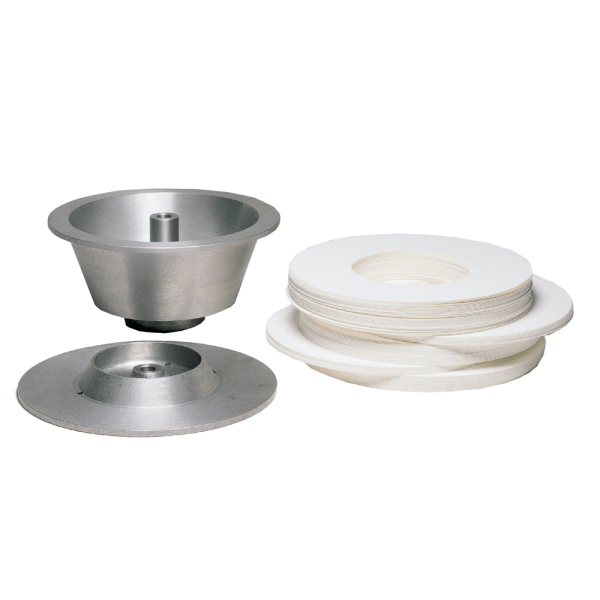

All Centrifuge Binder Extractors are supplied complete with 100 filter discs and feature a secure hand brake system for emergency use. The cover is precisely machined and fitted with a solvent-resistant gasket to prevent leakages during centrifugation.
Centrifuge Binder Extractors — Key Performance Features
AC Drive Inverter Motor: The Centrifuge Binder Extractors are driven by a 550W AC drive motor with inverter technology for precise speed control up to 3600 rpm at both 50 and 60 Hz supply frequencies. This eliminates the need for separate speed control equipment and ensures consistent extraction performance.
Adjustable Speed Control: The centrifuge can be set for automatic speed ramp up to 3600 rpm or any intermediate speed using the front control knob. A digital display monitors the frequency which is directly proportional to the rotational speed, giving operators full visibility of the extraction process.
Two Capacity Options: Centrifuge Binder Extractors are available in 1500g and 3000g capacity models to suit different laboratory throughput requirements. Both capacities are available in standard and explosion-proof versions.

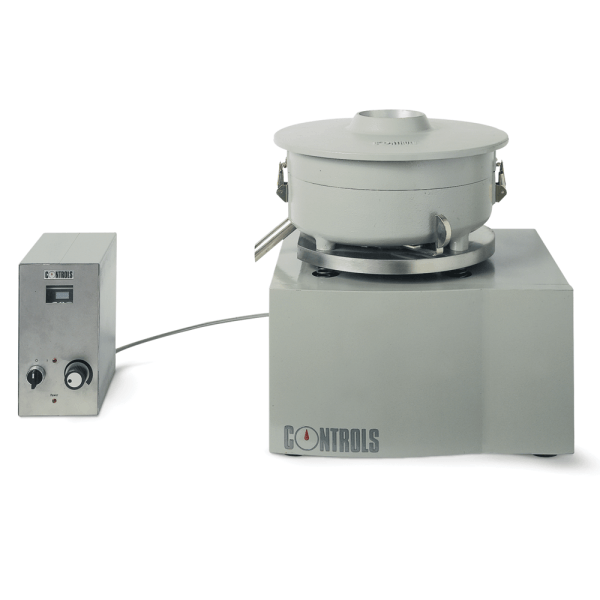

Explosion-Proof Version: Special explosion-proof models (75-B2222 and 75-B2322) with separate control panel are available for laboratories using flammable solvents. This ensures full safety compliance in environments where standard electrical equipment cannot be used.

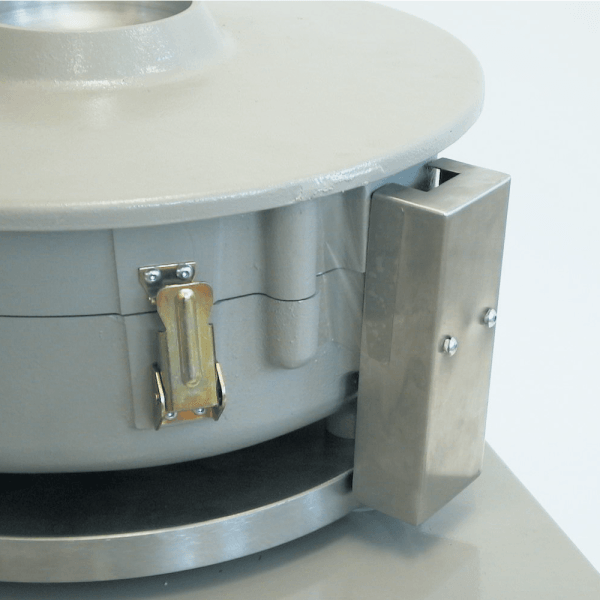

CE Safety Upgrade Option: Standard models can be upgraded with an electromagnetic system (75-B2210/UP1) to prevent the opening of the cover during rotation, conforming to CE directive safety requirements. This upgrade must be factory installed.
Electronic Braking System: The integrated electric brake ensures safe and rapid deceleration of the centrifuge at the end of each test, reducing cycle time and improving laboratory productivity.
Stable and Silent Operation: The four calibrated spring suspension system ensures the centrifuge operates stably and silently throughout the test, even at maximum speed. This reduces vibration transmission to the laboratory bench and surrounding equipment.
Technical Specifications
- Motor: AC drive (inverter) 550W
- Maximum Speed: 3600 rpm
- Capacity Options: 1500g and 3000g
- Speed Control: Digital display with front control knob
- Filter Discs Included: 100 per unit
- Overall Dimensions: 539 x 406 x 509 mm (L x D x H)
- Weight: approximately 54 kg
- Power Supply: 230V/50-60Hz/1ph or 110V/60Hz/1ph
- Compliance Standards: ASTM D2172, AASHTO T164-A, EN 12697-1
