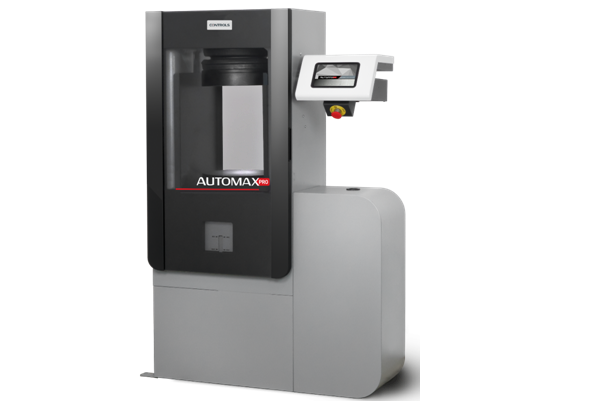

AUTOMAX PRO EN Automatic Compression Tester for Cubes and Cylinders
The AUTOMAX PRO is a premium, smart-line automatic compression tester designed for high-volume concrete testing. It combines a high-performance DC motor with “Smart-Line” connectivity to provide a seamless, error-free workflow for testing cubes and cylinders.
Key Performance Features
- Dual-Frame Control: Can manage up to 4 testing frames (compression, flexure, etc.) from a single power unit.
- Link-LAB Connectivity: Automatically integrates data from calipers and balances to eliminate manual entry errors.
- Energy Saving Technology: Driven by a silent 720W DC motor that reduces power consumption and ensures ultra-precise load control.

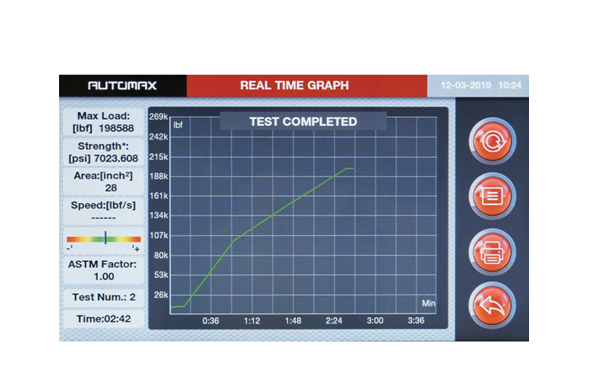

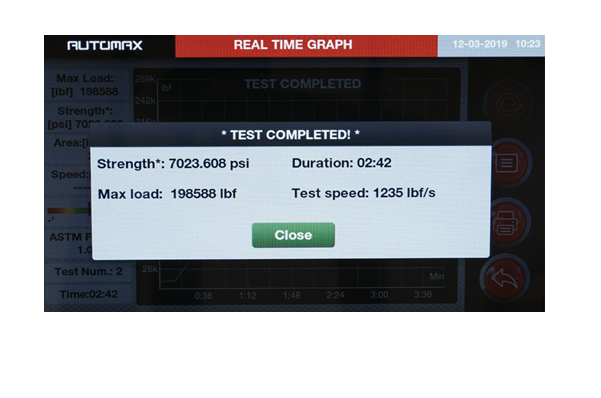

- Smart Interface: A7″ capacitive color touchscreen displays real-time load/time graphs and failure results.
Technical Specifications
- Capacity: Ranges from 1500 kN to 5000 kN depending on the selected frame.
- Standards: Fully compliant with ASTM C39, EN 12390-4, and AASHTO T22.
- Precision: Class 1 (ISO 7500-1) load accuracy with high-resolution 19-bit sampling.
- Speed Control: Advanced PID closed-loop control for perfectly constant loading rates.
- Connectivity: Features LAN and USB ports for direct LIMS integration and data export.
