Bituminous materials, a by-product of the oil distillation process, look set to remain as a constituent material of road paving for some considerable time to
come, being used to withstand the flexural and compressive stresses caused by traffic. Due to the ever increasing intensity of today’s traffic conditions there
is a demand for higher levels of performance from asphalt.
This section includes a wide range of testing equipment to fulfill all Standard requirements.

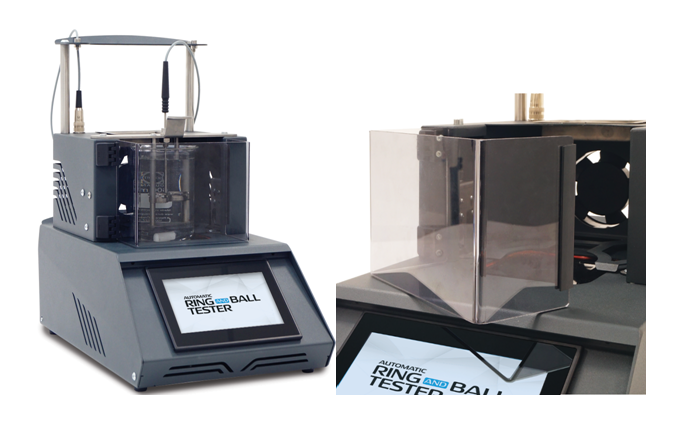

AUTOMATIC SOFTENING POINT: Ring and Ball Tester
The Automatic Ring and Ball Testeris a high-precision, microprocessor-controlled instrument used to determine the softening point of bituminous materials. It provides a completely automated testing environment, utilizing infrared sensors to detect the exact moment of specimen failure, ensuring consistent results that are free from human observation error.
Key Performance Features
- Fully Automated Cycle: Automatically controls the heating rate at exactly 5°C/min (as mandated by standards), detects the softening point via laser sensors, and records the results.
- Dual-Test Capacity: Equipped to test two samples simultaneously, providing the individual softening points and the average value.
- Smart Heating Control: Employs a high-performance induction heating system and a magnetic stirrer to ensure perfect temperature uniformity throughout the liquid medium (water or glycerol).
- Advanced User Interface: Features a large, high-resolution touch-screen for real-time graphing of the temperature/time curve and digital data management.
- Safety & Cooling: Built-in cooling system allows the operator to quickly lower the temperature of the beaker after a test, increasing laboratory throughput.
Compliance & Standards
- ASTM D36: The standard test method for softening point of bitumen (Ring-and-Ball apparatus).
- EN 1427: European standard for determination of the softening point of bituminous binders.
- AASHTO T53: American association standard for softening point testing.
- IP 58: Equivalent Institute of Petroleum method for consistency of binders.
Models & Customization
- Standard Model: Suitable for routine testing using water or glycerol.
- Integrated Cooling Model: Features a specialized cooling system for laboratories in hot climates or high-volume environments requiring rapid reset times.
- Accessories: Includes a Pyrex beaker, rings, ball-centering guides, and a set of steel balls as standard.

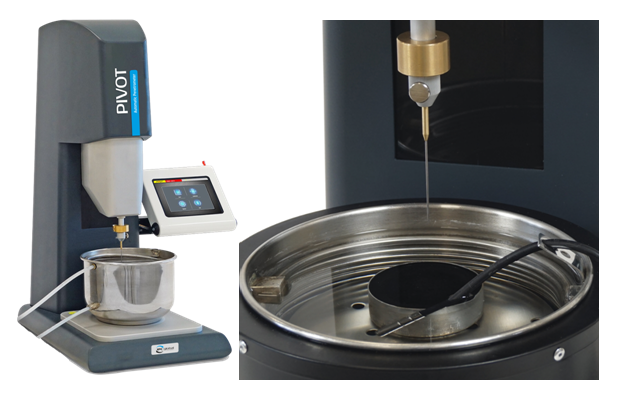

PIVOT: Fully Automatic Penetrometer
The PIVOT is a high-tech, fully automated penetrometer designed for the precise determination of bituminous material consistency. Unlike manual or semi-automatic models, the PIVOT utilizes advanced closed-loop electronic control and a displacement transducer to eliminate operator bias, ensuring unmatched repeatability in penetration tests.
Key Performance Features
- Fully Automated Test Cycle: One-touch operation manages the entire sequence: approach, needle-to-sample contact, penetration, and needle return.
- Precision Needle Positioning: Features a high-accuracy stepper motor and a sophisticated “auto-zero” system that detects the exact point of contact with the bitumen surface.
- Intuitive Interface: A 7″ color touch-screen display allows for real-time monitoring of the penetration curve and easy adjustment of test parameters.
- Flexible Test Modes: In addition to standard tests, the device allows for custom penetration times and delayed starts—ideal for samples requiring stabilization.
- Motorized Head Movement: Rapid and fine-tuned vertical adjustment of the head makes sample positioning quick and effortless.
Compliance & Standards
- ASTM D5: The standard test method for penetration of bituminous materials.
- EN 1426: European standard specifying a method for determining the needle penetration of bitumen and bituminous binders.
- AASHTO T49: American association standard for penetration tests on asphalt materials.
- IP 49: Equivalent standard from the Institute of Petroleum for penetration of bituminous materials.
Enhanced Accessories
To ensure a fully standardized testing environment, the PIVOT can be integrated with:
- Peltier Cooling/Heating System: For precise temperature control of the sample without the need for external water baths.
- LED Lighting: High-intensity cold-light source to clearly illuminate the sample area without affecting the temperature of the binder.
- Standard & Verified Needles: Available with official calibration certificates for high-stakes quality control.

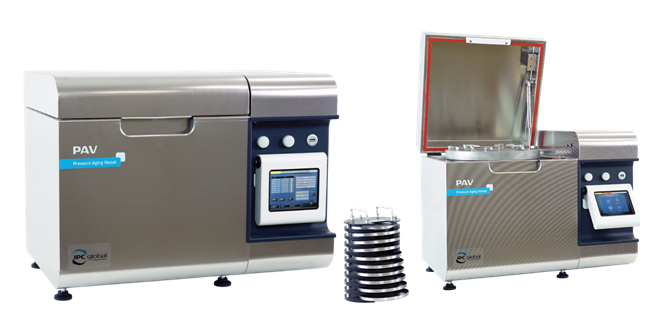

Pressure Aging Vessel (PAV)
The Pressure Aging Vessel (PAV) is a specialized instrument designed to simulate the long-term oxidative aging of asphalt binders over a 5 to 10-year service life. This essential process follows the initial short-term aging of the RTFOT and is a core requirement for Superpave performance-based testing.
Key Performance Features
- Intelligent Touch-Screen Control: Equipped with a 6″ color reclinable touch-screen, allowing operators to monitor vessel pressure and temperature in real-time via live graphs and data readouts.
- Rapid & Uniform Heating: Features highly efficient encased band heaters and PID temperature control that reaches the set point in less than one hour, exceeding international standard requirements.
- Programmable Pre-Heating: Includes a safety-limited pre-heating function (up to 60°C) to ensure the vessel is ready for testing immediately upon sample loading while protecting the operator.
- Safety-Centric Design: * Electronic Top Cover Lock: Prevents the lid from being opened while the vessel is pressurized or during the active test cycle.
- Forced Ventilation Cooling: A built-in system that quickly cools the sample rack after the test to prevent accidental burns.
- Over-Pressure & Over-Temp Protection: Integrated mechanical relief valves and software-driven cut-offs ensure total lab safety.
Compliance & Standards
- ASTM D6521: Standard practice for accelerated aging of asphalt binder using pressurized air.
- AASHTO R28: The American Association standard for pressurized aging of asphalt binder.
- EN 14769: European standard for accelerated oxidative aging of bituminous binders.
- Data Traceability: Test data (temperature and pressure logs) are saved directly to a USB stick or can be transferred to a PC for official reporting.
System Integration
To meet mandatory laboratory requirements, the PAV is typically paired with the Vacuum Degassing Oven (VDO). This removes air bubbles from the aged binder, making the sample ready for further testing in a Bending Beam Rheometer (BBR) or Dynamic Shear Rheometer (DSR).

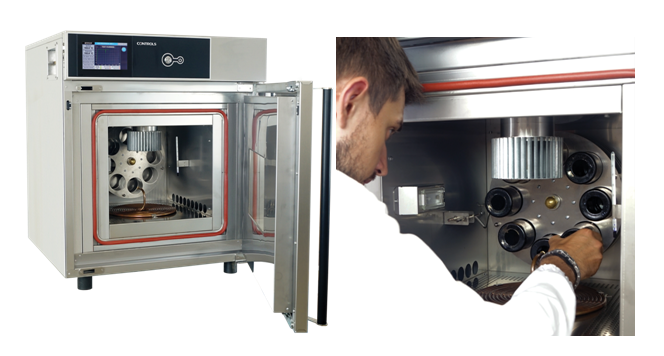

Rolling Thin Film Ovens (RTFOT)
The RTFOT (Rolling Thin Film Oven Test) is a critical laboratory instrument used to simulate the short-term aging of asphalt binders. This process mimics the hardening that occurs during the high-heat stages of mixing, hauling, and paving. By exposing a moving film of bitumen to heat and air, it prepares samples for further performance testing via DSR, PAV, or BBR.
Key Performance Features
- Touch-Screen Intelligence: A high-resolution 7″ color touch-screen (on advanced models) provides real-time monitoring of temperature, carousel speed, and airflow.
- Rapid Heat Recovery: Engineered to reach the target temperature of 163°C within minutes of sample loading, exceeding the strict recovery time requirements of international standards.
- Precision Airflow Control: Includes an integrated digital flow meter and air jet system to maintain a constant, regulated flow of 4,000 ml/min.
- Closed-Loop Speed Control: The vertical carousel rotates at a precise 15 rpm ± 0.2, ensuring uniform aging across all eight glass containers.
- Advanced Safety: Features a dual-safety thermostat to prevent overheating, a door-open alarm, and a magneto thermic switch for electrical protection.
Compliance & Standards
- ASTM D2872: The standard test method for the effect of heat and air on a moving film of asphalt.
- AASHTO T240: The American association standard for rolling thin-film oven testing.
- EN 12607-1: Complies with European requirements for determination of the resistance to hardening under influence of heat and air.
- Superpave Ready: Specifically designed for performance-based testing programs to predict long-term pavement durability.
Bitumen Testing Equipment in UAE
Bitumen has a crucial function in building high-quality roads and pavements within the UAE’s construction landscape. Properly testing bitumen is crucial to make sure that the roads are durable, safe, and resistant to harsh weather conditions. At Burgan UAE, we provide a comprehensive range of Bitumen Testing Equipment designed for construction experts who want to precisely evaluate bitumen properties and asphalt mixtures, thus ensuring that all projects conform to industry regulation’s highest standards.
Comprehensive Range of Bitumen Testing Equipment at Burgan UAE
- Penetration Testers: These devices determine the firmness or the softness of bitumen based on the penetration that the standard needle would make under given conditions. This test is very important especially as far as the consistency of the bitumen is concerned.
- Softening Point Testers: The softening point test is done to find the temperature range below which the bitumen is semi-solid and above which it tends to act more or less like a liquid. This information enables the engineers to determine the Bitumen Testing Equipment response to high temperature which is a critical factor in UAE climate.
- Ductility Testing Machines: These machines measure the extent to which the material known as bitumen can be pulled without cracking. In terms of traffic loads ductility is an essential characteristic of a material as this will determine the flexibility of the bitumen at any given time.
- Viscosity Testing Equipment: As a fundamental rheological property, the determination of the viscosity of bitumen serves precisely to examine its flow characteristics so that it can properly coat the aggregate particles during the manufacturing of asphalt.
- Flash and Fire Point Apparatus: These instruments determine the temperature at which these fluids give out enough explosive vapors. It is, therefore, crucial to be aware of the flash and fire points so that one can safely store, transport, and use bitumen.
- Marshall Stability Testing Equipment: This equipment tests for the strength and density of asphalt mixtures with a view of helping engineers determine the suitability of the mix for high-traffic areas.
Why Choose Us?
At Burgan UAE, we provide Bitumen Testing Equipment that is unrivaled in the market in terms of precision and dependability. Our equipment complies with global testing requirements hence it is utilized by engineers, contractors as well as quality control laboratories throughout the country to guarantee superior quality roadworks.
