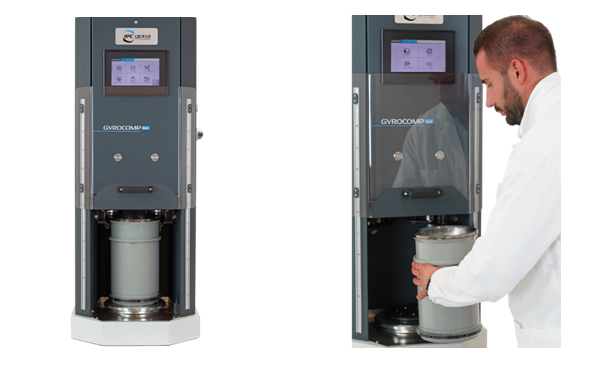

Key Performance Features

• 100% Electromechanical: Operates entirely without external air compressors or hydraulic pumps, reducing maintenance and enabling easy installation.
• Proprietary Orbital System: Delivers superior mechanical stiffness and highly repeatable gyratory angles, exceeding standard stability requirements.
• High Portability: Compact footprint and lightweight monocoque structure make it the ideal solution for mobile laboratory containers.
• User-Friendly Interface: Integrated 7″ color touchscreen for real-time plotting of compaction curves (height vs. gyrations) in multiple languages.
• Integrated Extruder (Optional): Features a motorized specimen extruder built directly into the worktop for streamlined workflow and operator safety.

Technical Specifications

• Standard Compliance: Fully conforms to AASHTO T312, ASTM D6925, and EN 12697-31 for asphalt mix design.
• Consolidation Pressure: Adjustable from 80 to 900 kPa (for 150 mm dia. samples).
• Gyratory Parameters: * Internal Angle: User-adjustable from 0.70° to 1.40°.
• Speed: Constant 30 rpm (adjustable between 20 to 60 rpm).
• Measurement Precision: * Height: Better than 0.1 mm resolution.
• Load: High-precision coaxial load cell (1 N resolution).
• Sample Versatility: Supports both 100 mm and 150 mm diameter molds, including perforated versions for cold mix asphalt.
• Data Management: Ethernet and USB ports for seamless data export and PC software integration.
