Key Performance Features

• Peltier Cooling Technology: Employs advanced thermoelectric cooling, eliminating the need for bulky external chillers or messy cooling fluids.
• Fully Automated Test Cycle: A “set-and-forget” system that manages temperature stabilization, specimen loading, and data acquisition with a single command.
• Superior Load Precision: Features a frictionless air bearing system and high-accuracy displacement transducers to ensure sensitive measurements of binder deflection.
• Real-Time Data Visualization: The integrated software provides live plotting of load, displacement, and temperature throughout the entire test duration.

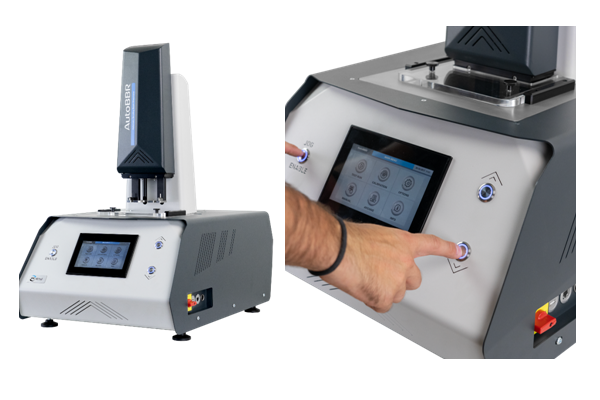

• Compact & Ergonomic: Designed with a small laboratory footprint, featuring an easy-access testing chamber for quick specimen loading and cleaning.
•  Technical Specifications

• Standard Compliance: Fully conforms to AASHTO T313, ASTM D6648, and EN 14771 for binder stiffness evaluation.
• Temperature Range: Maintains stable testing environments from -36°C to +25°C with high-precision control.
• Loading System: Air-actuated piston capable of maintaining a constant 980 mN load with negligible friction.
• Measurement Accuracy:
  • Displacement: 0.15 µm resolution.
  • Load: 2 mN resolution.
  • Temperature: 0.01°C resolution.
• Data Connectivity: Equipped with dedicated PC software for automated calculation of Stiffness and m-value, with seamless export functions for laboratory reports.
• Safety Features: Over-temperature protection and emergency shut-off controls integrated into the hardware.
